LFP Battery Pack for BYD Auto ATTO （2025-2026 ）
Specifications
Description
<p>1. Product Overview</p><p>The LFP Blade Battery for the BYD ATTO 3 (Yuan Plus) (2025–2026 model years) is an advanced lithium iron phosphate power solution engineered to deliver 510KM CLTC pure electric range. As the second‑generation upgrade for BYD’s globally popular compact electric SUV, this battery adopts enhanced CTP (Cell‑to‑Pack) integration and optimized LFP chemistry, offering greater energy density, faster charging, and superior thermal stability. Designed for global markets, it combines BYD’s iconic ultra‑safe blade structure with e‑Platform 3.0/4.0 compatibility, meeting daily commuting and long‑distance travel demands while upholding eco‑friendly, cobalt‑free, and nickel‑free material advantages.</p><p>2. Key Features</p><p>Enhanced Blade Structural Safety: Upgraded flat blade‑shaped LFP cells with ultra‑high structural strength; passes stringent nail‑penetration, crush, and thermal stability tests without fire or explosion.</p><p>510KM CLTC Long Range: 60.48 kWh high‑capacity LFP pack providing stable 510km CLTC cruising, extending travel range for urban and intercity trips.</p><p>Cobalt & Nickel Free Eco Design: Sustainable lithium iron phosphate chemistry using abundant raw materials, lower cost, and minimal environmental footprint.</p><p>Optimized CTP 2.0 Integration: Advanced Cell‑to‑Pack technology eliminates redundant components, boosting space utilization and energy density.</p><p>80kW High‑Power DC Fast Charging: Supports 30%–80% charge in approximately 30 minutes, with efficient charging curve and low heat generation.</p><p>Intelligent Liquid Cooling & Heat Pump Thermal System: Wide operating temperature range (-30°C to 60°C), maintaining stable performance in extreme cold and heat.</p><p>Long Cycle Life: ≥5,000 charge‑discharge cycles with ≥80% capacity retention, slower degradation and extended service life.</p><p>Upgraded BMS 3.0: Real‑time cell monitoring, precision balancing, and multi‑layer protection (overcharge, over‑discha
Products Description
1. Product Overview
The LFP Blade Battery for the BYD ATTO 3 (Yuan Plus) (2025–2026 model years) is an advanced lithium iron phosphate power solution engineered to deliver 510KM CLTC pure electric range. As the second‑generation upgrade for BYD’s globally popular compact electric SUV, this battery adopts enhanced CTP (Cell‑to‑Pack) integration and optimized LFP chemistry, offering greater energy density, faster charging, and superior thermal stability. Designed for global markets, it combines BYD’s iconic ultra‑safe blade structure with e‑Platform 3.0/4.0 compatibility, meeting daily commuting and long‑distance travel demands while upholding eco‑friendly, cobalt‑free, and nickel‑free material advantages.
2. Key Features
Enhanced Blade Structural Safety: Upgraded flat blade‑shaped LFP cells with ultra‑high structural strength; passes stringent nail‑penetration, crush, and thermal stability tests without fire or explosion.
510KM CLTC Long Range: 60.48 kWh high‑capacity LFP pack providing stable 510km CLTC cruising, extending travel range for urban and intercity trips.
Cobalt & Nickel Free Eco Design: Sustainable lithium iron phosphate chemistry using abundant raw materials, lower cost, and minimal environmental footprint.
Optimized CTP 2.0 Integration: Advanced Cell‑to‑Pack technology eliminates redundant components, boosting space utilization and energy density.
80kW High‑Power DC Fast Charging: Supports 30%–80% charge in approximately 30 minutes, with efficient charging curve and low heat generation.
Intelligent Liquid Cooling & Heat Pump Thermal System: Wide operating temperature range (-30°C to 60°C), maintaining stable performance in extreme cold and heat.
Long Cycle Life: ≥5,000 charge‑discharge cycles with ≥80% capacity retention, slower degradation and extended service life.
Upgraded BMS 3.0: Real‑time cell monitoring, precision balancing, and multi‑layer protection (overcharge, over‑discharge, over‑current, short‑circuit, over‑temperature).
Full Vehicle System Compatibility: Seamlessly integrated with BYD e‑Platform 3.0/4.0 and ATTO 3’s powertrain, VCU, and infotainment systems.
Global Safety & Emission Compliance: Meets UN ECE R100, EU RoHS, REACH, and GB 38031‑2025 new national standards.
3. Specifications
Battery Type: Lithium Iron Phosphate (LFP) Blade Battery (CTP 2.0)
Fitment: BYD ATTO 3 (BYD Yuan Plus) 2025–2026 (Compact Electric SUV)
CLTC Range: 510KM (Pure Electric)
Gross Capacity: 60.48 kWh
Usable Capacity: ~58 kWh

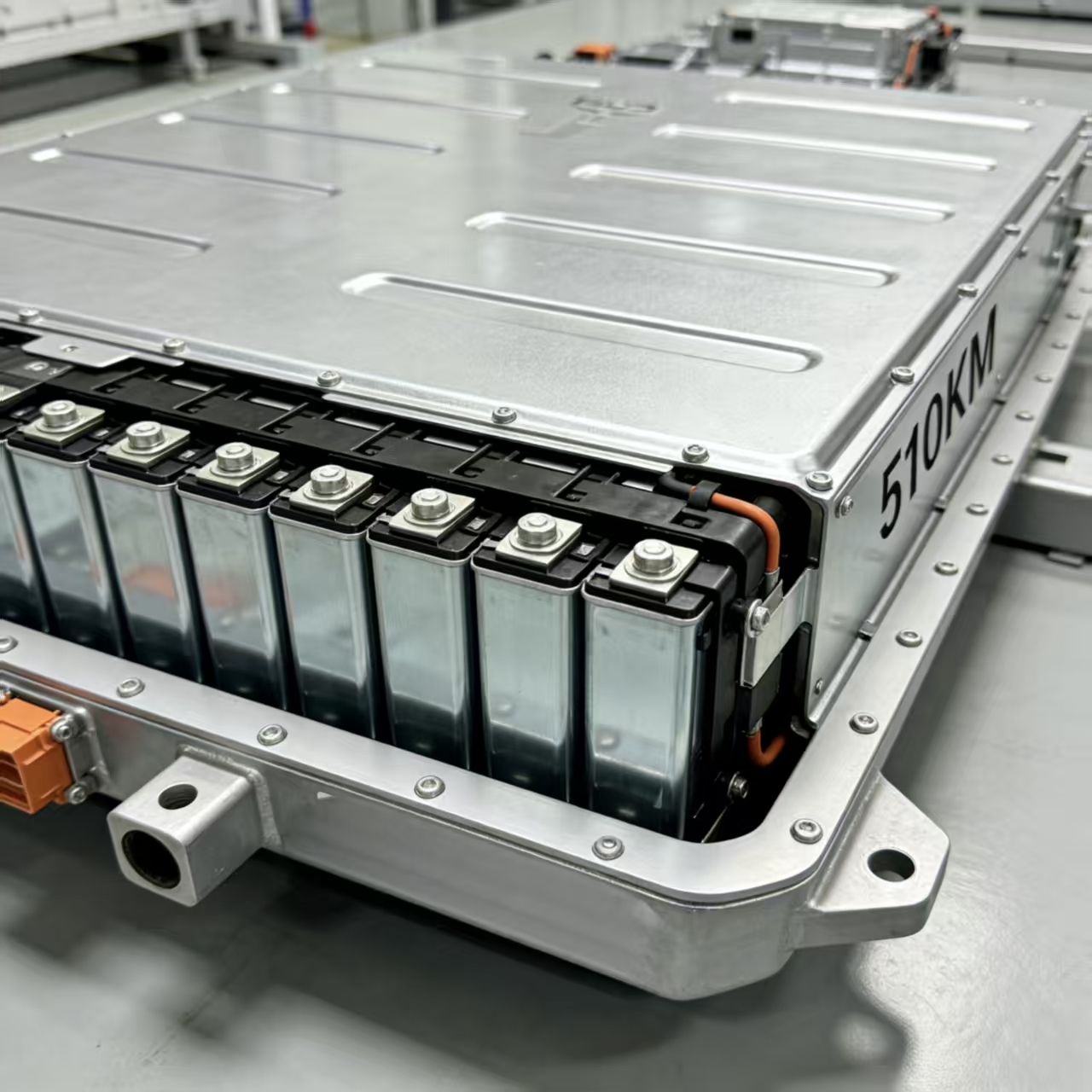

Cell Format: Blade‑shaped (flat rectangular) single cells
Chemistry: LiFePO4 (Cobalt‑free, Nickel‑free)
Nominal Voltage: 416 V
Configuration: 130S1P (130 series, 1 parallel)
Thermal Management: Liquid cooling + liquid heating + heat pump
DC Fast Charging: Max 80kW (CCS2 port); 30%–80% in ~30 mins
AC On‑board Charging: 11kW (Type 2 port); 0%–100% in ~8.64 hrs
Cycle Life: ≥5,000 cycles (≥80% capacity retention)
Operating Temperature: -30°C to 60°C
Safety Features: Nail‑penetration safe, thermal runaway protection, crash‑resistant structure, IP67 dustproof & waterproof
Standard Warranty: 8 years / 150,000 km (global standard)
Approximate Pack Weight: ~410 kg
Compliance: UN ECE R100, EU RoHS, REACH, GB 38031‑2025, Euro NCAP
