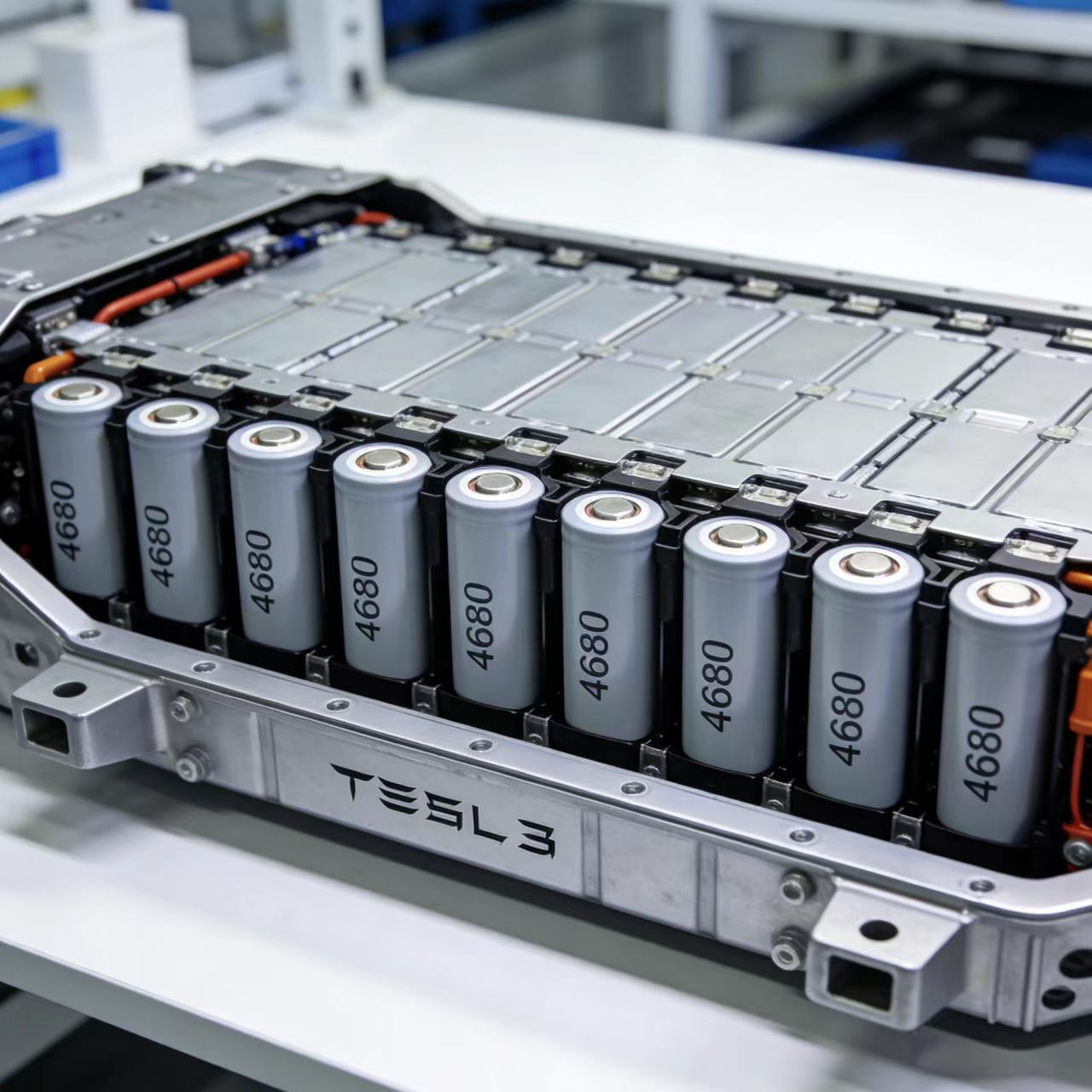

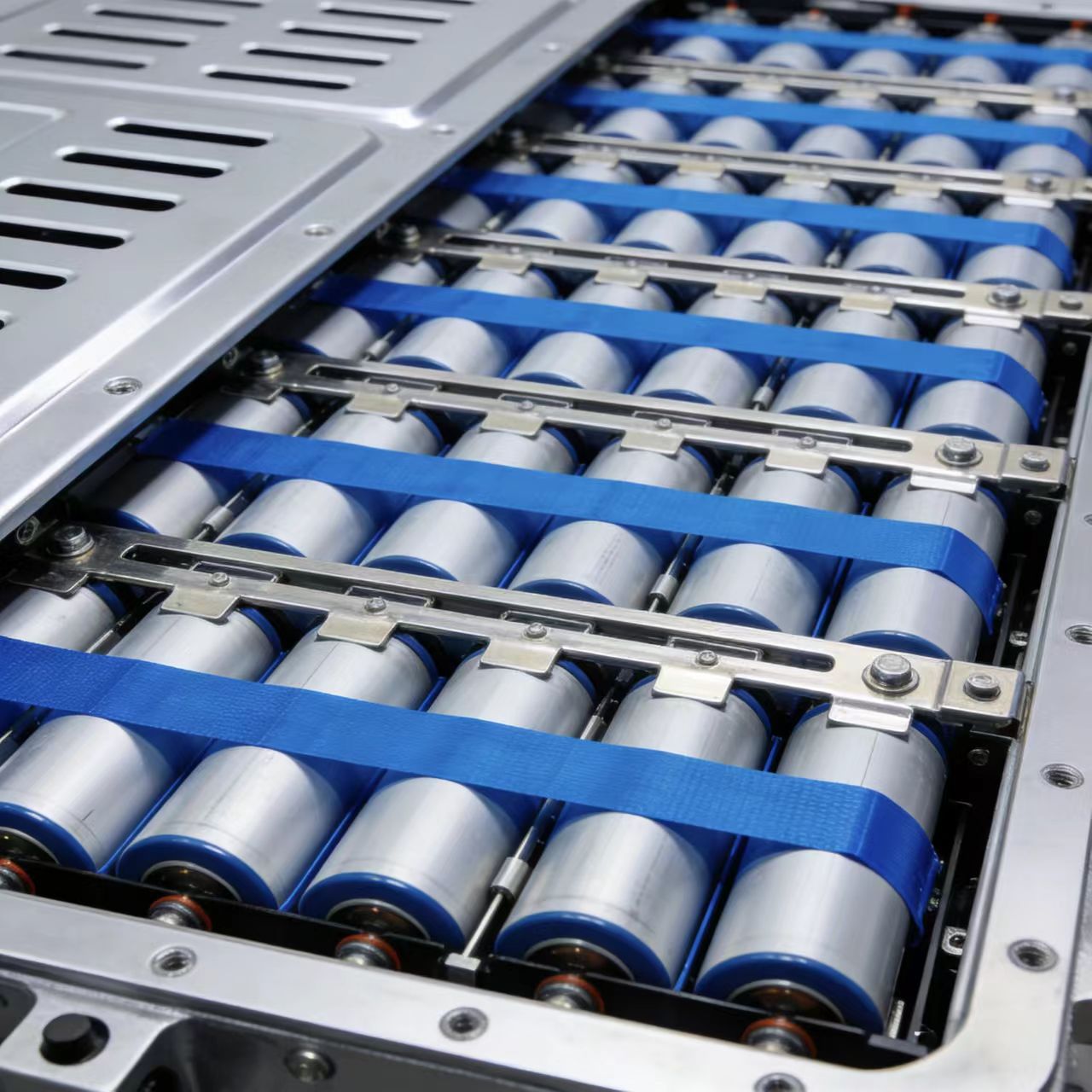

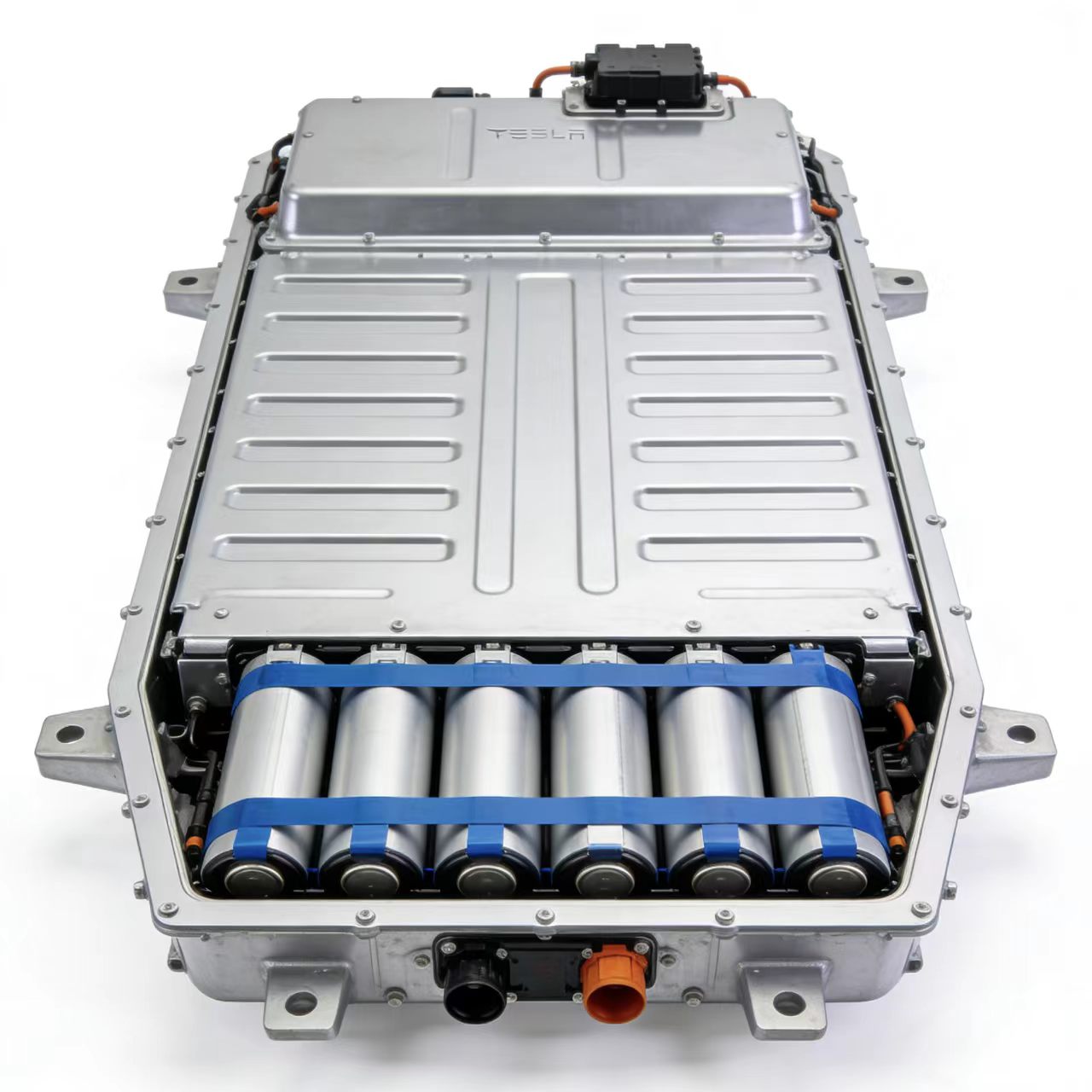

4680 Battery Pack for Tesla Model 3 4th Gen (2023–2026)

Product Overview

This 4680 cylindrical high-nickel NCM ternary lithium battery is exclusively engineered for the 4th Generation Tesla Model 3 (2023–2026), available in 78.4 kWh, 82 kWh, and higher capacity variants. It integrates Tesla’s core innovations including tabless structure, dry electrode technology, and high-nickel NCM cathode materials (Ni>88%), delivering a revolutionary leap in energy density, charging speed, and durability compared to previous battery generations. Fully compatible with the 4th Gen Model 3’s Cell-to-Chassis (CtC) design, powertrain, and Megacharger supercharging architecture, the battery pack ensures exceptional long-range performance, efficient energy replenishment, and reliable operation, while complying with global automotive safety and environmental standards, redefining the driving experience for electric vehicles.

Key Features

Advanced 4680 Cylindrical Design: 46mm diameter and 80mm height, combined with tabless structure that shortens current path by 95%, reduces internal resistance by 70-80%, and improves heat dissipation efficiency by 600% compared to 2170 batteries.

High-Nickel NCM Cathode: Adopts high-nickel NCM ternary materials (e.g., NCM811 with 81.6% nickel content), eliminating cobalt to reduce cost while boosting energy density and cycle life.

Dual Capacity Options & Expandability: 78.4 kWh and 82 kWh standard versions, with support for higher capacity variants (82 kWh+), tailored to different range requirements of the 4th Gen Model 3.

Dry Electrode Technology: Solvent-free manufacturing process simplifies production, reduces energy consumption by 50%, and increases energy density by 5% through thicker electrode coatings, while lowering overall production costs.

Ultra-Fast Charging Support: Compatible with Tesla Megacharger, supporting 4C fast charging (peak power up to 1.2MW), enabling 15 minutes of charging to replenish 50% of power (about 400km range) and 30 minutes to reach 60% capacity.

Superior Cycle Life: ≥2000 charge-discharge cycles with ≥80% capacity retention, 33% longer than 2170 batteries, suitable for long-term vehicle ownership.

Enhanced Safety: Equipped with silicon-composite anode (10% oxidized silicon with bionic carbon cage) to reduce expansion rate, self-healing separator, and potting process, passing full-charge needle puncture and collision tests without thermal runaway.

Perfect Compatibility: Fully adapted to the 4th Gen Tesla Model 3 (2023–2026), matching CtC chassis integration, electrical specifications, and charging protocols for seamless assembly and operation.

Specifications

Battery Type: 4680 Cylindrical High-Nickel NCM Ternary Lithium Battery

Application: Tesla Model 3 4th Generation (2023–2026)

Rated Capacity: 78.4 kWh / 82 kWh / 82 kWh+ (usable capacity with reserved buffer for protection)

Cell Format: 4680 cylindrical (46mm diameter × 80mm height)

Cathode Material: High-nickel NCM ternary (Ni>88%, e.g., NCM811), cobalt-free

Anode Material: Silicon-composite graphite (Si-C) with bionic carbon cage

Manufacturing Process: Dry electrode coating (solvent-free, NMP-free)

Nominal Voltage: 380–400 V (matches 4th Gen Model 3’s high-voltage platform)

Thermal Management System: Integrated liquid cooling and heating, maintaining optimal temperature (15–35℃), low-temperature (-30℃) capacity decay <25%

Charging Compatibility: DC fast charging (max 1.2MW, 4C rate), AC slow charging (11 kW)

Cycle Life: ≥2000 cycles (capacity retention ≥80% after cycles)

Internal Resistance: 0.8–1.2 mΩ (70–80% lower than 2170 batteries)

Protection Functions: Overcharge, over-discharge, over-current, short-circuit, over-temperature, under-temperature, and thermal runaway protection

Operating Temperature Range: -40℃ to 60℃ (optimal operating temperature: 15–35℃)

Battery Pack Weight: Approximately 440–460 kg (varies by capacity)

Warranty: 8 years / 160,000 km (capacity decay ≤20% within the warranty period)

Production Yield: ≥95% (mass-produced with full dry electrode process)
